Roofbag - bag system for airline rails

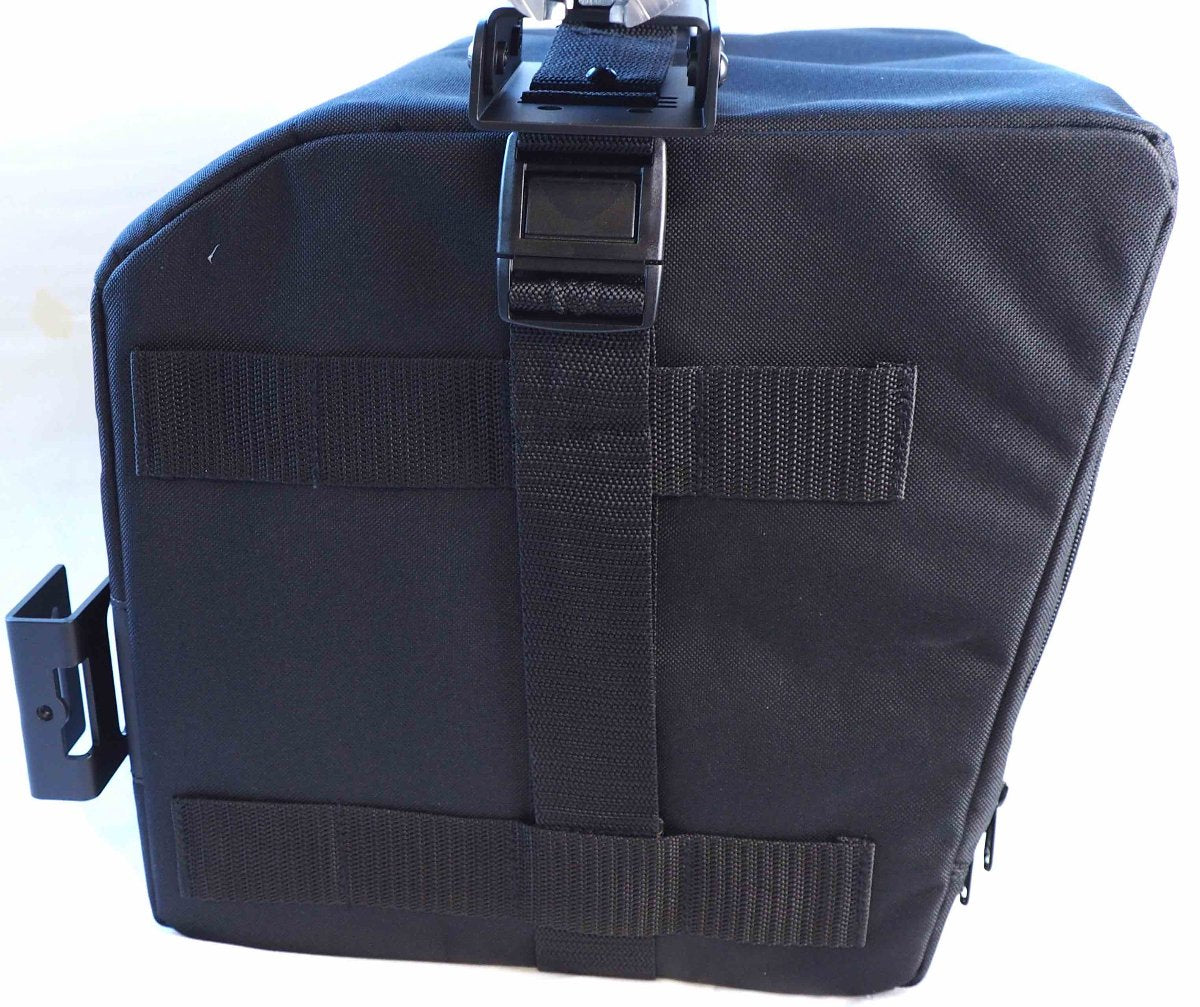

The Roofbag is a roof locker system for installation in vans. Thanks to the large number of adjustment options, the bag can be flexibly installed using movable aluminum slides. The bag is simply hung on two straps using two YKK fasteners, and a magnetic mechanical fastener on the back prevents the bag from swinging.

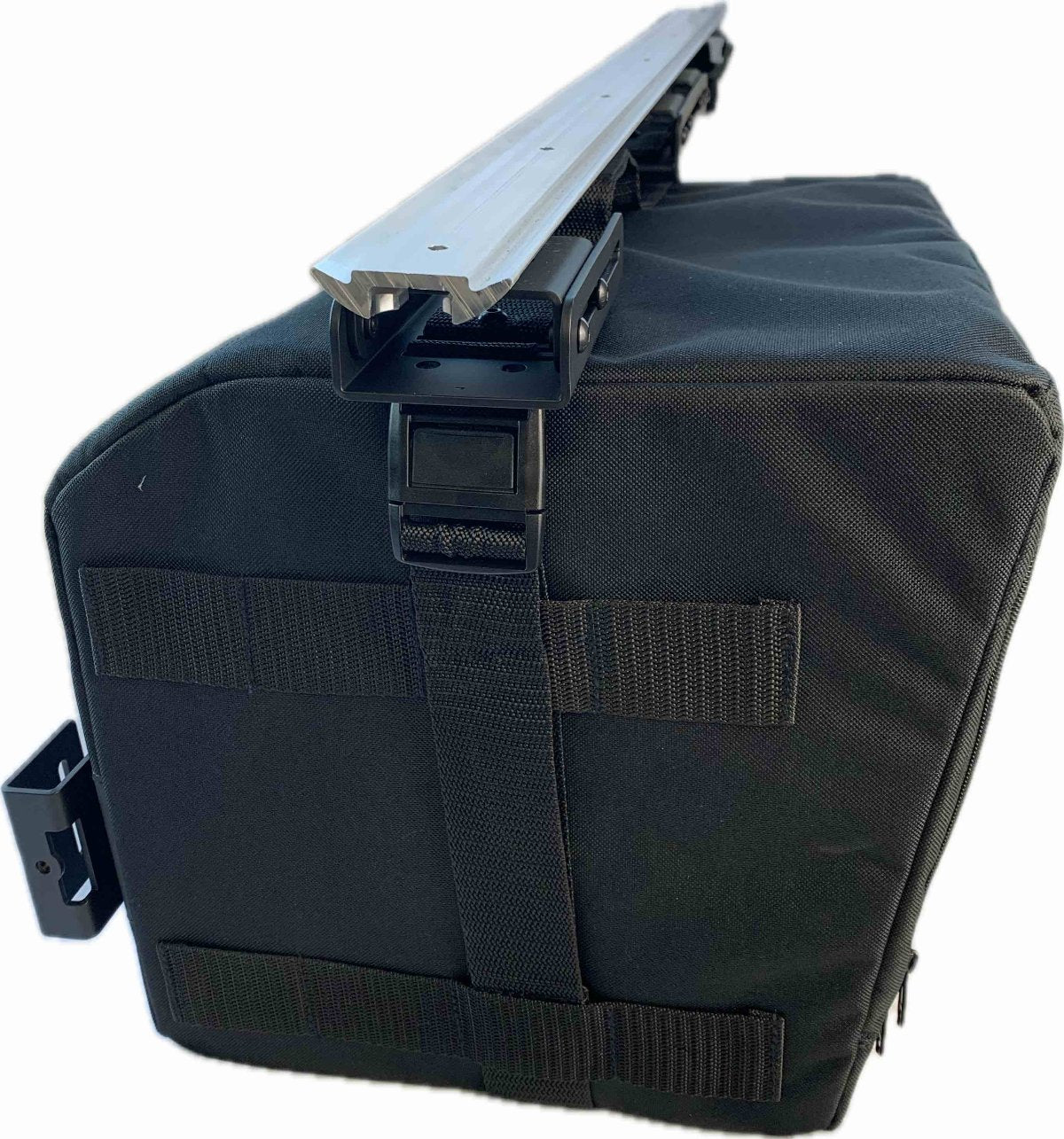

The aluminum slides can be rotated as desired, so it doesn't matter whether the airline rail is mounted in the direction of travel or perpendicular to it. At the same time, the bag's straps can be adjusted in four different ways. We also offer a double holder for mounting several bags next to each other, so that bags can be hung next to each other without wasting valuable space.

The system is delivered pre-assembled and can be attached to an aluminum rail within a few minutes. You can also find suitable T-nuts and M6 screws in our shop and they are not included in the scope of delivery.

Dimensions of the bag: 40cm x 30cm x 30cm, the back is cut diagonally at the top so that the bodywork pillars do not interfere.

The middle floor of the roof bag is removable.

The aluminum sleds:

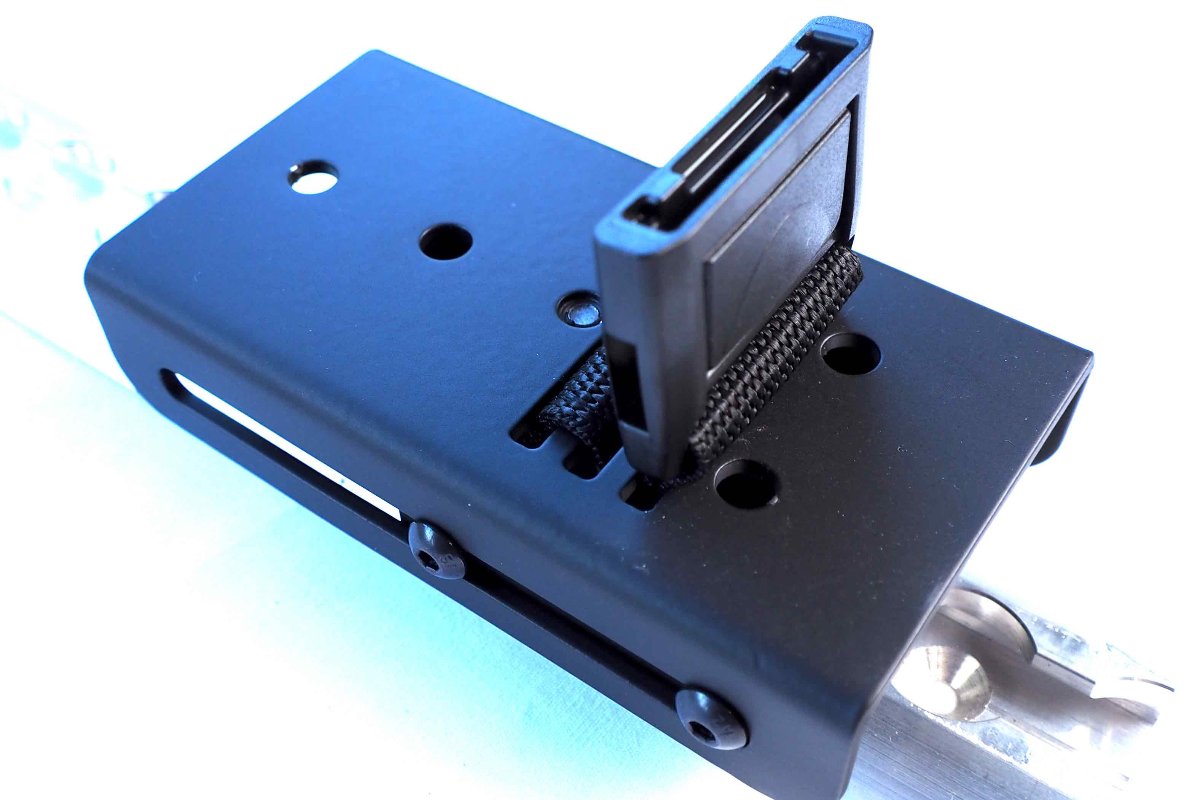

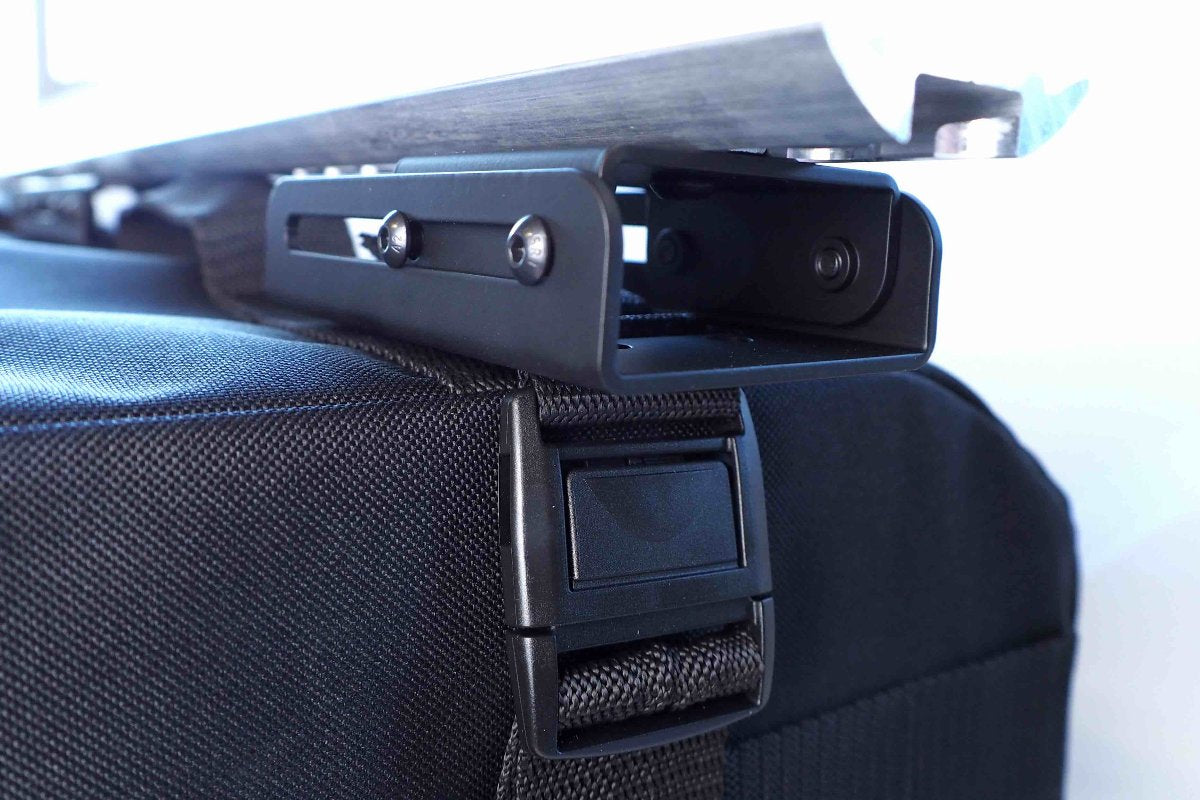

Each bracket on the airline rail consists of two parts, a smaller inner slide and the outer slide with the YKK backpack fastener. The inner slide is screwed to the airline rail via a slot nut, and the outer slide is secured with the backpack lock. The fastening screws for the slot nut are always accessible via the mounting openings.

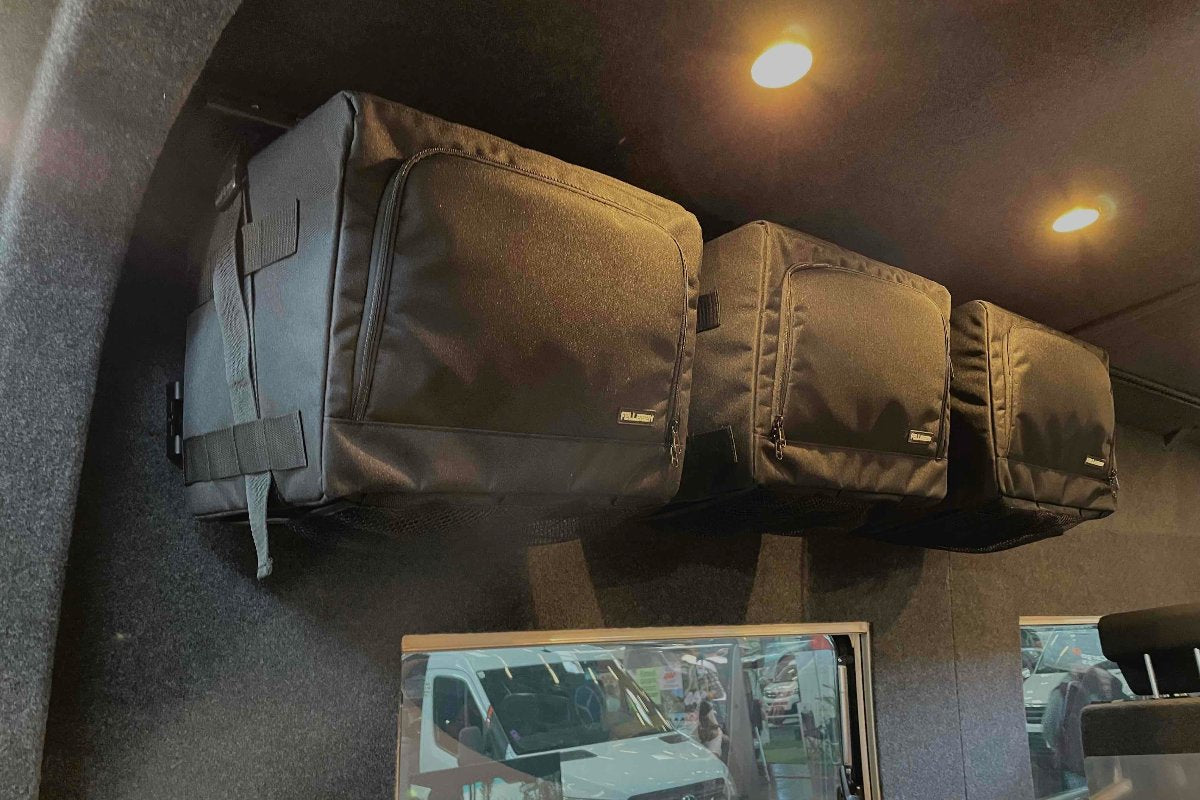

A bag can be attached to an airline rail using two single slides. For mounting several bags in a row, we offer a double slide, which is mounted between two bags. The double slide has two inner slides.

Mechanical magnetic closure:

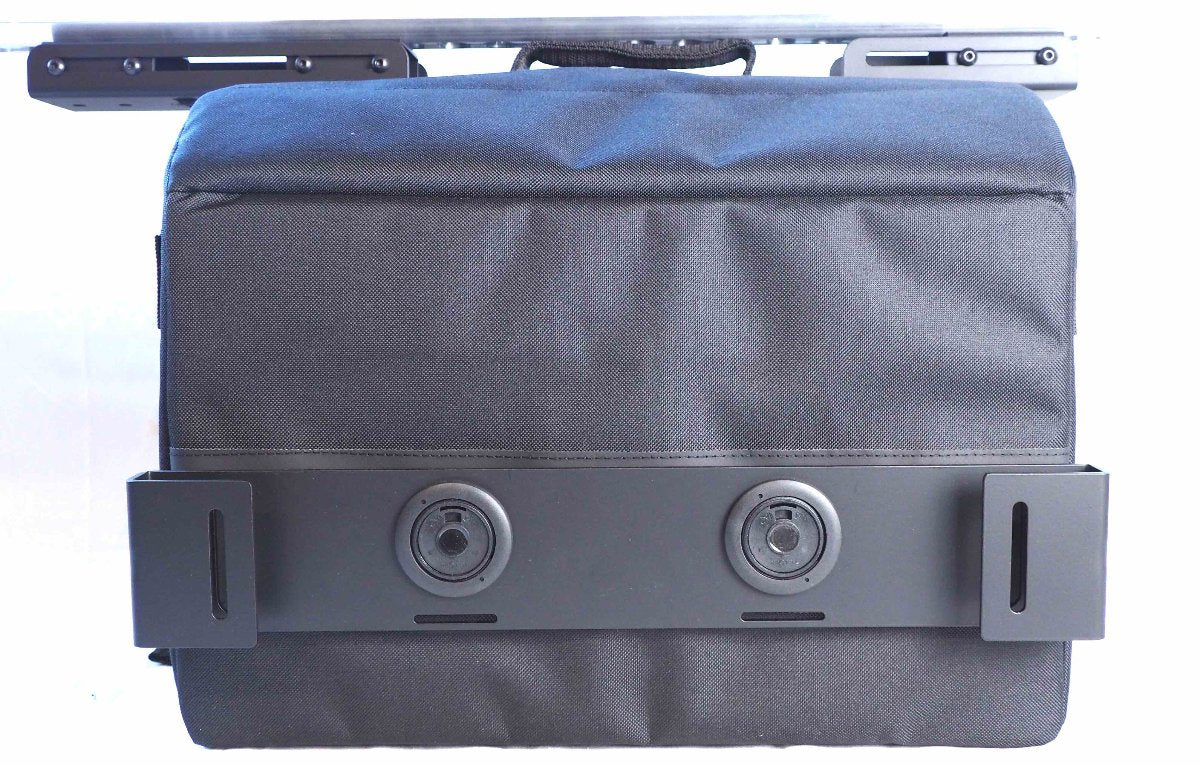

The bag is additionally secured to the vehicle wall at the back with two mechanically magnetic fasteners. We supply these pre-assembled on an aluminum plate, which in turn can be screwed to an airline rail or directly to a wooden wall.
The aluminum plate can be adjusted in height by 40mm.

You can find detailed installation instructions here: Installation instruction

• Single bag:

Two single slides, rear wall bracket, roof bag

• Set of two:

For mounting two roof bags in a row:

Two single sleds, one double sled, two roof bags with rear wall bracket

• Set of three

For mounting three roof bags in a row:

Two single sleds, two double sleds, three roof bags with rear wall bracket

IMPORTANT: The screws and slot nuts to attach our system to the airline rail are not included, but can be purchased in the shop.

Hersteller: Felleisen GmbH, Falkenstr. 12, 91154 Roth
Kontakt: www.felleisen.com, info@felleisen.com
Sicherheitshinweise:

- nicht für Kinder unter drei Jahren geeignet
- Produkt enthält Kleinteile, welche verschluckt werden können
- Quetschgefahr bei der Montage oder beim Umgang mit Magneten
- Maximale gesamtes Taschengewicht 6 kg
- Bitte beachten Sie die allgemeinen Sicherheits- und Produkthinweise auf unserer Website
- Produkt kann Magente enthalten die elektronische Geräte, Magnetstreifen, auch Herzschrittmacher und icd-Produkte oder andere medizinische Geräte stören können.
